New Orleans NAS JRB/Alvin Callender Field Private

NBG · KNBG · New Orleans, LA · 2 ft elevation · var 0E · Towered

Airport information

ICAO / IATA
KNBG / NBG
Coordinates
29.8253, -90.0350
Elevation
2 ft MSL
Magnetic variation
0E
Sectional chart
NEW ORLEANS
Airport use
Private
Control tower
Yes
ARTCC
HOUSTON (ZHU)
Flight service (FSS)
DE RIDDER
NOTAM facility
NBG
Attendance
MON-FRI 1300-0500Z++; SAT-SUN 1600-0000Z++
Beacon
S-white-green (SS-SR)
Segmented circle
No
Activated
1940/04
Distance from city
3 S

Weather

METAR observed

Loading current weather…

TAF forecast

Loading forecast…

Sun & FAA night 2026-06-21

EventLocal (CDT)UTC
Morning civil twilight
Loggable night ends
05:33 AM10:33Z
Sunrise06:00 AM11:00Z
Sunset08:04 PM01:04Z
Evening civil twilight
Loggable night begins
08:31 PM01:31Z
Loggable night (§1.1)
08:31 PM → 05:33 AM
Night currency (§61.57)
09:04 PM → 05:00 AM

Plan a flight from KNBG

Night operations

Airport lighting
SEE RMK
Rotating beacon
S-white-green · SS-SR

Runway lighting aids — 04: 4-light PAPI (left) + ALSF1 · 22: 4-light PAPI (left) + ALSF1 · 14: 4-light PAPI (left) · 32: 4-light PAPI (left) + SALS.

FAA night windows (civil twilight, loggable night §1.1, currency §61.57) are in the live weather panel above.

Traffic pattern

04TPANSEW
LEFT traffic
Landing
Rwy 04 · 044°
Pattern
left (turns left)
TPA
1,000 ft MSL (≈1,000 AGL)

Enter the left downwind for Rwy 04 at 1,000 ft MSL (≈1,000 AGL) on a 45°. TPA estimated at 1,000 ft AGL (not charted for this field).

Runway 04/22

10,000 ft × 200 ft · PEM (Good)

Edge lights: High.

04
Heading
044° mag · 44° true
Markings
precision
VGSI
4-light PAPI (left) (3°)
Approach lights
ALSF1
Instrument landing
LOC/GS · CAT I · LOC 109.5 (NBG) · GS 3.00°
Traffic pattern
Left
22
Heading
224° mag · 224° true
Markings
precision
VGSI
4-light PAPI (left) (3°)
Approach lights
ALSF1
Traffic pattern
Right

Runway 14/32

6,000 ft × 200 ft · PEM (Good)

Edge lights: High.

14
Heading
141° mag · 141° true
Markings
nonprecision
VGSI
4-light PAPI (left) (3°)
Traffic pattern
Right
32
Heading
321° mag · 321° true
Markings
nonprecision
VGSI
4-light PAPI (left) (3°)
Approach lights
SALS
Traffic pattern
Left
ft · ≥1.5× comfortable, under 1.25× tight · saved across airports

Communication frequencies

ServiceFrequencyNotes
A/D123.85APP/DEP
ATIS27.62
GND121.6NAVY NEW ORLEANS GND
MISC38.18USCG NEW ORLEANS AIR
OPS37.915BASE OPS
PMSV26.58PMSV METRO
TWR123.8NAVY NEW ORLEANS TWR

Nearby navigation aids

NavAidTypeFreqRadial / Dist magnetic
HRV · HarveyVORTAC114.10r226° / 2.2 NM
RQR · ReserveVOR-DME110.80r117° / 32.8 NM
LEV · LeevilleVORTAC113.50r003° / 39.2 NM

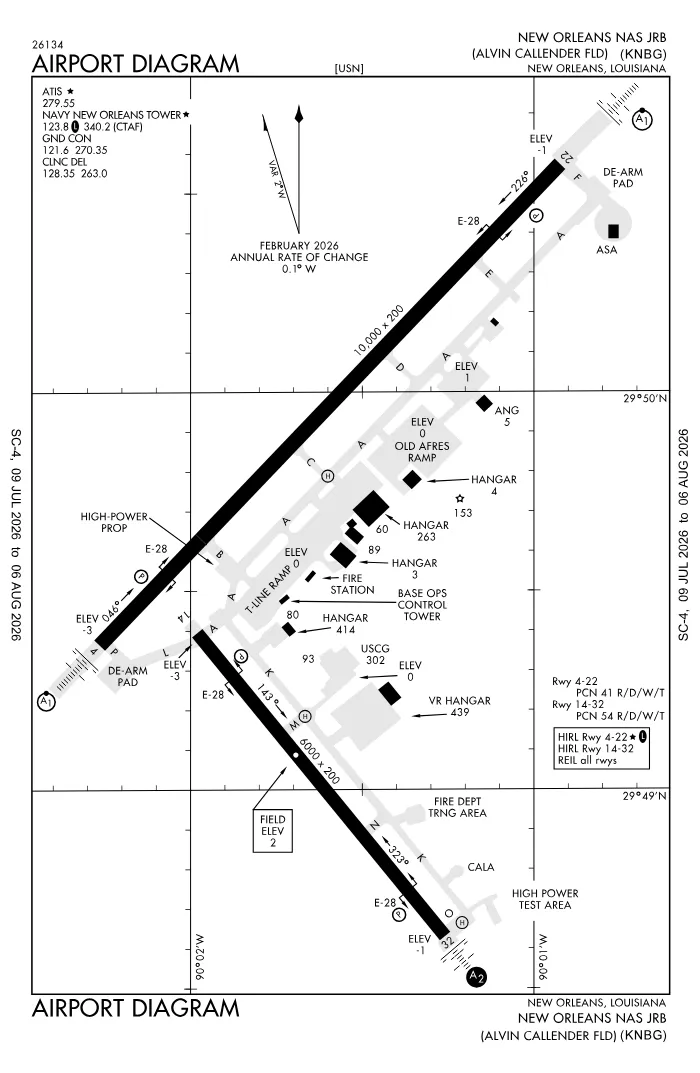

Airport diagram

Open PDF ↗
Preview diagram Open the airport diagram PDF

Procedures at a glance

Lowest mins: ILS · vertical guidance Takeoff mins / ODP ↗

Approaches9

Arrivals

Minimums & Hot Spots

Chart Supplement FAA A/FD

Open PDF ↗
Preview Chart Supplement Open the Chart Supplement PDF

VFR sectional

Open KNBG on the VFR sectional (SkyVector) ↗

Services

Bottled oxygen
NONE
Bulk oxygen
NONE
Airframe service
NONE
Powerplant service
NONE

Ownership & management

Owner
U S NAVY
OCEANOGRPAHIC OFC-CODE 3142, WASHINGTON, D C
Manager
COMMANDING OFFICER
NAS NEW ORLEANS, NEW ORLEANS, LA

Remarks FAA

  • CAT B AFLD.
  • NUMEROUS BIRDS ON & INVOF ARPT.
  • CSTMS/AG/IMG - AVBL TO MIL ACFT/PERS ONLY, COORD WITH AIRFIELD SERVICES DSN 678-3602, C504-678-3602. OTHER CSTMS REQUIREMENTS CTC C504-623-6600 FOR APPOINTMENT.
  • TRAN ALERT: OPR 1300-0500Z++.
  • CAUTION: NUMEROUS CIV ACFT OPR TO/FR CANALS VCNTY AFLD.
  • SERVICE - A-GEAR: MAINTAINED IN RAISED POSN AND IN BATTERY AT ALL TIMES, DO NOT LAND DRCT ON A-GEAR CABLES.
  • CG - OPR RSTD 0500-1300Z++ TO CG. DSN 678-3515, C504-678-6032.
  • JASU: 4(A/M-47A-4) 4(NC-10) LTD DC PWR.
  • FUEL: OPR 1330-0430Z++. FUEL DELAYS FRI-SUN. TRAN ACFT EXP SOME DELAY FOR SVC OUTSIDE NML WORKING HR. J8
  • OIL: O-128-156.
  • FLUID: PRESAIR LHOX LOX.
  • CAUTION: BIRD HAZ.
  • OT CIV ACFT TRNS CLASS D, CTC ATC ON 123.8 FOR CLNC.
  • SERVICE: NO LAV SERVICES AVBL.
  • SERVICE: L-AOE.
  • SERVICE-LGTS: CARRIER DECK LIGHTING ON RWY 04 FOR FCLP'S AVBL UPON REQ ONE HR PRIOR. CARRIER DECK RWY 32 UNLIT; VFR/DAY USE ONLY
  • ANG- LA ANG AM OPS OPR 1330-2130Z++ TUES-FRI AND UNIT TRNG ACT WEEKEND.LA ANG AM OPS, DSN 457-8637, C504-391-8637, FAX DSN 457-8671, C504-391-8671
  • FIRE DEPT STS CAT II.
  • BASE OPS DSN 678-3101, C504-678-3101 OR FAX DSN 678-9575, C504-678-9575
  • CAUTION: 180 DEG TURNS AND PIVOTS ON ASPH UNAUTHD.
  • SERVICE LGT- DOUBLE YELLOW TWY END LGT AT END OF TWY K/O, L AND P NOT INSTLD.
  • SERVICE: LGT- PILOT CNTRLD AFLD LGT ARE NSTD. ONLY PCL RWY 4/22 HIRL AND RWY 32 SALS. RESPONSE TIME FOR PCL IS NSTD WITH APPROX 10 SEC DELAY FROM PILOT INPUT TO LIGHT INTENS CHANGE
  • FOR CIV ACFT LDG PMT (CALP) INFO CTC AFLD MGR C504-678-4592.
  • RSTD - PPR ALL ACFT 72 HR PN, SHORT NTC PPR APV ON A CASE-BY-CASE BASIS DSN 678-3602/3, C504-678-3602/3.
  • FUEL - LOCAL NOZZLE OPERATORS FOR REFUELING UNAVAILABLE. TRANSIENT AIRCRAFT SHALL PROVIDE THEIR OWN NOZZLE OPERATOR.
  • ALL TRANSIENT AIRCRAFT MUST BE AT OR BELOW 475,000 IBS.
  • PCL 123.8 OR 340.2.
  • TFC PAT: OVERHEAD BREAK ALT 1500'. PAT ALT 1000'.
  • CLSD HOL EXC BY NOTAM.
  • CLSD HOL EXCEPT BY NOTAM.
  • HOOK E28 (B) (1500')
  • HOOK E28(B) (1025')
  • HOOK E28(B) (1501')
  • HOOK E28(B) (1025')
  • PCL NSTD. 3 CLICKS RWY 04 MED INTS. 5 CLICKS RWY 22 MED INTS. 7 CLICKS RWY 04 HI INTS. TTINGS.
  • MED INTS ALL SETTINGS.
  • OLS & WAVE-OFF.
  • OLS & WAVE-OFF.
  • RWY 32 - OLS.

Nearby airports

65LA · Southern Seaplane AirportPrivate (3 NM)82LA · Fisher's Field (8 NM)KNEW · Lakefront Airport (13 NM)LS40 · St Charles AirportPrivate (15 NM)KMSY · Louis Armstrong New Orleans International Airport (16 NM)1LA1 · Triche FieldPrivate (23 NM)

Weather is live from the Aviation Weather Center; airport facility data is from the FAA NASR (28-day cycle). For planning and education only; always verify against official sources. Open KNBG in a full tool: METAR/TAF decoder, crosswind calculator, sun & night times, or the density altitude calculator. Planning from here? Find the nearest airport with fuel or an approach, or check whether an IFR alternate is required.

About KNBG

New Orleans NAS JRB/Alvin Callender Field (NBG · KNBG) is an airport in New Orleans, LA, at 2 ft MSL. It has 2 runways, the longest 10,000 ft, with a control tower. This page shows live METAR/TAF weather, runway crosswinds, frequencies, navaids, and FAA charts for KNBG, refreshed from the Aviation Weather Center and FAA NASR.

Does KNBG have a control tower?

Yes. New Orleans NAS JRB/Alvin Callender Field has an operating FAA control tower. Check the Comms & NavAids tab for tower and ground frequencies.

What is the longest runway at KNBG?

New Orleans NAS JRB/Alvin Callender Field has 2 runways; the longest is 10,000 ft. See the Runways tab for headings, surface, and lighting.

Where is KNBG?

New Orleans NAS JRB/Alvin Callender Field is in New Orleans, LA, at an elevation of 2 ft MSL. Coordinates: 29.8253, -90.0350.
